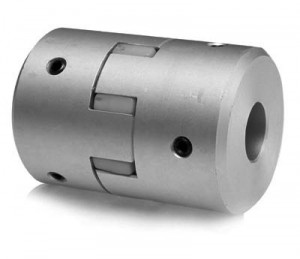

Curved Jaw Couplings

coupling-jaw-candy-controls

Quick Facts


  • Zero backlash, flexible shaft
  • Absorbs vibration, angular and parallel misalignment
  • Provides electrical isolation
  • Identical clockwise and counterclockwise rotation
  • Select up to three spider hardnesses
  • Multiple bore and shaft connecting configurations

Product Overview

Composed of two metallic hubs with an elastomer insert commonly referred to as a “spider.” The spider material is designed to dampen vibration and to provide electrical isolation. Curved jaw couplings accommodate misalignment and provide an economical solution for motion applications that are continuous or light to moderate in cycle duty.

Quick Reference Guide

Series CL8 CL10 CL16 CL17 CL19 CL20 CL22
Torque Range (Nm) .7-1880 7.5-1880 .7-1300 12-1310 1.5-100 .7-1310 12.5-12124.5
Bore Range (mm) 3-70 8-70 3-60 11-60 16-48 3-60 8-70
Max Speed (rpm) 3,150-34,100 5,000-20,000 5,500-19,000 5,500-13,000 4,000-12,000 3,600-34,100 2600-15000
Mounting Options Setscrew, Clamp, Keyway Locking Assembly Setscrew, Clamp, Keyway Setscrew, Clamp, Keyway Setscrew, Keyway Setscrew, Clamp, Keyway Setscrew, Clamp, Keyway
DOWNLOAD COMPLETE QUICK REFERENCE GUIDE

Technical Data

Type Zero Backlash Torque rpm Inertia Torsional Stiffness Misalignment Electrically Isolated Cost
Parallel Angular Shaft Endplay
Curved Jaw, Aluminum Yes High High Moderate Moderate Moderate Low High Yes Low

2D and 3D Images

Please Contact Candy Controls for CAD step files.
