Spiral Bevel Gearboxes
About our Spiral Bevel Gearbox products
Candy Controls offers a comprehensive line of precision and high efficiency spiral bevel gearboxes. The CSB is an industrial duty right angle gearbox well suited for power transmission applications, while the higher precision CT/CTB series are more commonly used in motion control applications. Our flexible design allows 90° turns, has the ability to split power and send it in opposite directions, and to change the direction of shaft rotation. Learn more about our spiral bevel gearboxes below.
|
Spiral Bevel Gearbox |
 |
 |
 |
| Performance Specifications | CSB Series |
CTB Series |
CT Series |
| Torque Range (Nm) | 5.8-1833.5 Nm | 12-3200 Nm | 12-3200 Nm |
| Continuous Input Speed (RPM) | 1,500 RPM | 1,000 RPM | 1,000 RPM |
| Ratios Available | 1:1, 2:1 | 1:1 to 500:1 | 1:1 to 500:1 |
| Accuracy/Backlash (arc minutes) | 10-15 | 6 | 6 |
| 2-4 Output Shafts | Yes | Yes | Yes |
| Hollow Output Shafts | No | Yes | Yes |
| Standard Motor Flange | No | Yes | Yes |
| Stainless Steel | No | No | Yes |
| Cost | $ | $$ | $$$ |

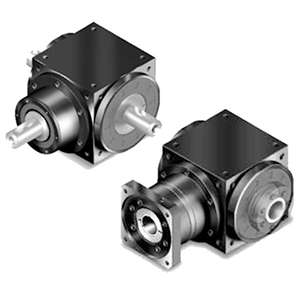

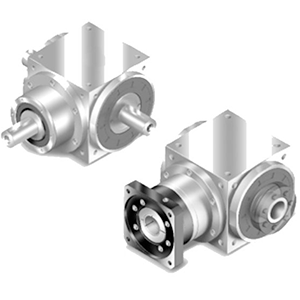

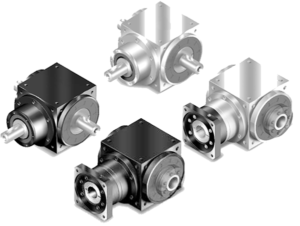

CT/CTB Series
Product Highlights
- CT is 100% stainless steel and the CTB is standard steel
- High-torque, low-backlash right-angle gearboxes
- Backlash from 6 arc minutes
- Flexible design accommodates multiple shaft options
- Metric and NEMA motor adaptors for virtually any type of motor
- Ratios from 1:1 up to 500:1 with planetary stages
- 2-year product warranty
Product Overview
These precision right-angle gearboxes feature ground spiral bevel gear sets for applications that require accuracy and repeatability. This series is available in combination with planetary stages to achieve ratios from 1:1 up to 500:1. They are available in both stainless steel (CT) and carbon steel (CTB) models. Both the CT and CTB series are available with motor adapter flanges to fit a most metric and NEMA servo motors. With multiple options and configurations available, we can help you select the right spiral bevel gearbox for your application needs. For more information click the link below.

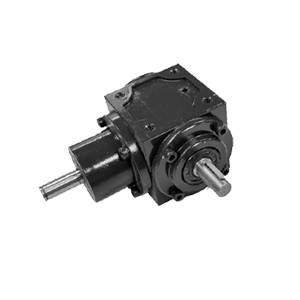

CSB Series
Product Highlights
- Standard ratios 1:1 and 2:1, additional ratios available
- 95% transmission efficiency
- 1500 RPM maximum input speed
- Motor adapter flanges available
- 1 year product warranty
Product Overview
Candy’s CSB features a comprehensive line of industrial duty 1:1 and 2:1 right-angle gearboxes. These spiral bevel gearboxes are available in two, three and four shaft configurations and can be fitted with flanges to accommodate motor mounts. Our gears are engineered for superior wear resistance and durability. For more information click the link below
60 Years Of Industry Expertise Ready To Help You
At Candy Controls we take a hands-on approach in helping you select the right product for your specific application.
Ask us anything. Our extensive industry experience allows us to be able to uniquely understand your project needs, and help you select the right Precision Spiral Bevel Gearbox for your specific application.
If you have specific questions about this product or any of our other products, fill out the form below, call (847) 588-2639, or talk to us via the live chat option in the bottom right corner of this page.
