Economy Spur Planetary Gearboxes Dimensions and Specifications

CPAX042

Specifications

CPAX042 1-STAGE 2-STAGE
RATIO(1)(2) RATIO(1)(2)
3 4 5 7 9 10 15 16 20 25 30 35 40 50 70 81 100
Nominal Output Torque T(2N) Nm 16 16 15 12 8 10 15 16 16 15 15 12 16 15 12 8 10
Emergency Stop Torque T(2NOT) Nm 3 times T(2N)
Max. Acceleration Torque T(2B) Nm 29 29 27 22 14 18 28 29 29 27 27 22 29 27 22 15 18
No Load Running Torque (8) Nm 0.05 0.05
Backlash (3) arcmin ≦ 8 ≦ 10
Torsional Rigidity Nm/arcmin 0.9 0.9
Nominal Input Speed n(1N) rpm 4,500
Max. Input Speed n(1B) rpm 8,000
Max Radial Load F(2nB)(4) N 810
Max Axial Load F(2aB)(4) N 405
Service Life(7) hr 20,000
Operating Temperature °C 0°C – +90°C
Lubrication Synthetic lubrication grease
Degree of Protection IP 65
Mounting Position All directions
Running Noise (6) (8) db(A) ≦ 60
Efficiency η % ≧ 97% ≧ 94%
Weight kg ∅(6) ≦8, 11, 14=0.7 ∅(6) ≦8, 11, 14=0.8
Moment of Inertia J(1) kgcm^2 ∅(6) ≦8 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
∅(6) ≦11 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16
∅(6) ≦14 0.2 0.2 0.19 0.19 0.19 0.19 0.2 0.19 0.2 0.19 0.19 0.2 0.19 0.19 0.19 0.19 0.19

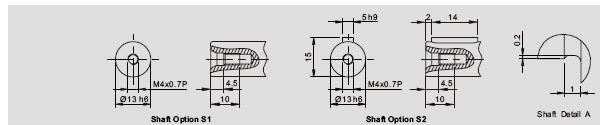

Dimensions

(1) This dimension refers to the motor shaft diameter.
(2) The maximum motor shaft length. For other Motor specific dimensions, please contact Candy Controls
(3) Input dimensions vary according to motor flange
(4) Please contact Candy Controls, if there is no proper dimension
(5) ∅ = input shaft diameter

CPAX060

Specifications

CPAX060 1-Stage 2-Stage
Ratio(1)(2) Ratio(1)(2)
3 4 5 7 9 10 15 16 20 25 30 35 40 50 70 81 100
Nominal Output Torque T(2N) Nm 42 42 40 35 24 27 40 42 42 40 40 35 43 40 35 24 27
Emergency Stop Torque T(2NOT) Nm 3 times T(2N)
Max. Acceleration Torque T(2B) Nm 76 76 72 63 43 49 72 76 76 72 72 63 77 72 63 43 49
No Load Running Torque (8) Nm 0.1 0.1
Backlash (3) arcmin ≦ 7 ≦ 9
Torsional Rigidity Nm/arcmin 2.2 2.2
Nominal Input Speed n(1N) rpm 4,000
Max. Input Speed n(1B) rpm 6,000
Max Radial Load F(2nB)(4) N 1,150
Max Axial Load F(2aB)(4) N 575
Service Life(7) hr 20,000
Operating Temperature °C 0°C – +90°C
Lubrication Synthetic lubrication grease
Degree of Protection IP 65
Mounting Position All directions
Running Noise (6) (8) db(A) ≦ 62
Efficiency η % ≧ 97% ≧ 94%
Weight kg ∅(6) ≦8, 11, 14=1
∅(6) ≦ 19=1.9
∅(6) ≦8, 11, 14=1.5
∅(6) ≦19=2.2
Moment of Inertia J(1) kgcm^2 ∅(6) ≦8 0.12 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
∅(6) ≦11 0.19 0.16 0.16 0.16 .016 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16
∅(6) ≦14 0.22 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
∅(6) ≦19 1.53 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51 1.51

Dimensions

(1) This dimension refers to the motor shaft diameter.
(2) The maximum motor shaft length. For other Motor specific dimensions, please contact Candy Controls
(3) Input dimensions vary according to motor flange
(4) Please contact Candy Controls, if there is no proper dimension
(5) ∅ = input shaft diameter

CPAX090

Specifications

CPAX090 1-Stage 2-Stage
Ratio(1)(2) Ratio(1)(2)
3 4 5 7 9 10 15 16 20 25 30 35 40 50 70 81 100
Nominal Output Torque T(2N) Nm 110 113 118 96 60 68 109 116 116 123 108 100 117 123 100 59 70
Emergency Stop Torque T(2NOT) Nm 3 times T(2N)
Max. Acceleration Torque T(2B) Nm 198 203 212 173 108 122 196 208 208 221 195 179 210 221 179 106 127
No Load Running Torque (8) Nm 0.4 0.3
Backlash (3) arcmin ≦ 6 ≦ 8
Torsional Rigidity Nm/arcmin 8 8
Nominal Input Speed n(1N) rpm 3,600
Max. Input Speed n(1B) rpm 6,000
Max Radial Load F(2nB)(4) N 1,530
Max Axial Load F(2aB)(4) N 765
Service Life(7) hr 20,000
Operating Temperature °C 0°C – +90°C
Lubrication Synthetic lubrication grease
Degree of Protection IP 65
Mounting Position All directions
Running Noise (6) (8) db(A) ≦ 64
Efficiency η % ≧ 97% ≧ 94%
Weight kg ∅(6) ≦14=2.5
∅(6) ≦19,24,28=3.5
∅(6) ≦14=3.4
∅(6) ≦19,24,28=4.4
Moment of Inertia J(1) kgcm^2 ∅(6) ≦14 0.36 0.24 0.22 0.21 0.2 0.2 0.22 0.24 0.22 0.22 0.2 0.22 0.2 0.2 0.2 0.2 0.2
∅(6) ≦19 1.7 1.58 1.56 1.55 1.54 1.54 1.56 1.58 1.56 1.56 1.54 1.56 1.54 1.54 1.54 1.54 1.54
∅(6) ≦24 2.24 2.12 2.1 2.09 2.09 2.09 2.1 2.12 2.1 2.1 2.09 2.1 2.09 2.09 2.09 2.09 2.09
∅(6) ≦28 2.68 2.55 2.53 2.52 2.52 2.52 2.53 2.55 2.53 2.53 2.52 2.53 2.52 2.52 2.52 2.52 2.52

Dimensions

(1) This dimension refers to the motor shaft diameter.
(2) The maximum motor shaft length. For other Motor specific dimensions, please contact Candy Controls
(3) Input dimensions vary according to motor flange
(4) Please contact Candy Controls, if there is no proper dimension
(5) ∅ = input shaft diameter

CPAX115

Specifications

CPAX115 1-Stage 2-Stage
Ratio(1)(2) Ratio(1)(2)
3 4 5 7 9 10 15 16 20 25 30 35 40 50 70 81 100
Nominal Output Torque T(2N) Nm 217 223 220 198 125 155 213 228 230 22/ 212 206 232 228 206 131 162
Emergency Stop Torque T(2NOT) Nm 3 times T(2N)
Max. Acceleration Torque T(2B) Nm 391 401 396 356 225 279 383 411 413 411 381 370 417 411 370 236 291
No Load Running Torque (8) Nm 0.8 0.4
Backlash (3) arcmin ≦ 6 ≦ 8
Torsional Rigidity Nm/arcmin 12 12
Nominal Input Speed n(1N) rpm 3,600
Max. Input Speed n(1B) rpm 4,800
Max Radial Load F(2nB)(4) N 3,470
Max Axial Load F(2aB)(4) N 1,735
Service Life(7) hr 20,000
Operating Temperature °C 0°C – +90°C
Lubrication Synthetic lubrication grease
Degree of Protection IP 65
Mounting Position All directions
Running Noise (6) (8) db(A) ≦ 66
Efficiency η % ≧ 97% ≧ 94%
Weight kg ∅(6) ≦ 19, 24, 28 =6.5
∅(6) ≦ 32, 35 =8.1
∅(6) ≦ 38 =12
∅(6) ≦ 19, 24, 28 =8.7
∅(6) ≦ 32, 35 =10.3
∅(6) ≦ 38 =14.2
Moment of Inertia J(1) kgcm^2 ∅(6) ≦19 2.2 1.73 1.65 1.61 1.6 1.6 1.65 1.73 1.65 1.65 1.6 1.65 1.6 1.6 1.6 1.6 1.6
∅(6) ≦24 2.74 2.27 2.19 2.15 2.14 2.14 2.19 2.27 2.19 2.19 2.14 2.19 2.14 2.14 2.14 2.14 2.14
∅(6) ≦28 3.17 2.7 2.62 2.58 2.57 2.57 2.62 2.7 2.62 2.62 2.57 2.62 2.57 2.57 2.57 2.57 2.57
∅(6) ≦32 7.77 7.3 7.22 7.18 7.17 7.17 7.22 7.3 7.22 7.22 7.17 7.22 7.17 7.17 7.17 7.17 7.17
∅(6) ≦35 10.8 10.3 10.2 10.2 10.2 10.2 10.2 10.3 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2
∅(6) ≦38 14 13.5 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4 13.4

Dimensions

(1) This dimension refers to the motor shaft diameter.
(2) The maximum motor shaft length. For other Motor specific dimensions, please contact Candy Controls
(3) Input dimensions vary according to motor flange
(4) Please contact Candy Controls, if there is no proper dimension
(5) ∅ = input shaft diameter

CPAX142

Specifications

CPAX142 1-Stage 2-Stage
Ratio(1)(2) Ratio(1)(2)
3 4 5 7 9 10 15 16 20 25 30 35 40 50 70 81 100
Nominal Output Torque T(2N) Nm 430 440 435 366 273 295 424 452 454 450 422 382 459 450 382 285 308
Emergency Stop Torque T(2NOT) Nm 3 times T(2N)
Max. Acceleration Torque T(2B) Nm 774 792 783 659 491 531 763 813 817 810 759 688 827 810 688 513 555
No Load Running Torque (8) Nm 2.5 0.8
Backlash (3) arcmin ≦ 6 ≦ 8
Torsional Rigidity Nm/arcmin 16 16
Nominal Input Speed n(1N) rpm 2,500
Max. Input Speed n(1B) rpm 3,600
Max Radial Load F(2nB)(4) N 4,640
Max Axial Load F(2aB)(4) N 2,320
Service Life(7) hr 20,000
Operating Temperature °C 0°C – +90°C
Lubrication Synthetic lubrication grease
Degree of Protection IP 65
Mounting Position All directions
Running Noise (6) (8) db(A) ≦ 68
Efficiency η % ≧ 97% ≧ 94%
Weight kg ∅(6) ≦ 24, 28 = 11.3
∅(6) ≦ 32, 35 = 12.9
∅(6) ≦ 38, 42 = 16.8
∅(6) ≦ 19. 24, 28 = 15.4
∅(6) ≦ 32, 35 = 17
∅(6) ≦ 38 = 20.9
Moment of Inertia J(1) kgcm^2 ∅(6) ≦19 1.85 2.18 1.85 1.85 1.69 1.85 1.69 1.69 1.69 1.69 1.69
∅(6) ≦24 4.52 2.73 2.4 2.26 2.23 2.23 2.4 2.73 2.4 2.4 2.23 2.4 2.23 2.23 2.23 2.23 2.23
∅(6) ≦28 4.94 3.15 2.82 2.68 2.65 2.65 2.82 3.15 2.82 2.82 2.65 2.82 2.65 2.65 2.65 2.65 2.65
∅(6) ≦32 9.7 7.91 7.58 7.44 7.41 7.41 7.58 7.91 7.58 7.58 7.41 7.58 7.41 7.41 7.41 7.41 7.41
∅(6) ≦35 12.8 11 10.7 10.5 10.5 10.5 10.7 11 10.7 10.7 10.5 10.7 10.5 10.5 10.5 10.5 10.5
∅(6) ≦38 16 14.2 13.9 13.7 13.7 13.7 13.9 14.2 13.9 13.9 13.7 13.9 13.7 13.7 13.7 13.7 13.7
∅(6) ≦42 24.5 22.7 22.4 22.2 22.2 22.2

Dimensions

(1) This dimension refers to the motor shaft diameter.
(2) The maximum motor shaft length. For other Motor specific dimensions, please contact Candy Controls
(3) Input dimensions vary according to motor flange
(4) Please contact Candy Controls, if there is no proper dimension
(5) ∅ = input shaft diameter
