Precision Right Angle Gearbox Dimensions and Specifications

CT Flange Series Performance Specifications Back to Top

CT Gearhead Performance Ratio 1 Stages Model Numbers
CT065FL CTO65FL1
CTO65FH CTO65FC
CT075FL CT075FL1
CT075FH CT075FC
CT090FL CT090FL1
CT090FH CT090FC
CT110FL CT110FL1
CT110FH CT110FC
CT140FL CT140FL1
CT140FH CT140FC
CT170FL CT170FL1
CT170FH CT170FC
CT210FL CT210FL1
CT210FH CT210FC
CT240FL CT240FL1
CT240FH CT240FC
CT280FL CT280FL1
CT280FH CT280FC
Continuous Torque (Nm) 1 1 25 45 78 150 360 585 1,300 2,150 3,200
1.5 1 25 45 78 150 360 585 1,300 2,150 3,200
2 1 24 42 68 150 330 544 1,220 2,010 3,050
3 1 18 33 54 120 270 450 1,020 1,650 2,850
4 1 13 28 48 100 224 376 860 1,410 2,300
5 1 12 25 40 85 196 320 740 1,210 2,000
7 2 25 45 78 150 360 585 1,300 2,150 3,200
10 2 24 42 68 150 330 544 1,220 2,010 3,050
15 2 18 33 54 120 270 450 1,020 1,650 2,850
20 13 28 48 100 224 376 860 1,410 2,300
25 2 12 25 40 85 196 320 740 1,210 2,000
35 2 12 25 40 85 196 320 740 1,210 2,000
50 2 12 25 40 85 196 320 740 1,210 2,000
75 3 ­ ­ ­ 120 270 450 1,020 1,650 2,850
100 3 ­ ­ ­ 100 224 376 860 1,410 2,300
125 3 ­ ­ ­ 85 196 320 740 1,210 2,000
150 3 ­ ­ ­ 120 270 450 1,020 1,650 2,850
200 3 ­ ­ ­ 100 224 376 860 1,410 2,300
250 3 ­ ­ ­ 85 196 320 740 1,210 2,000
350 3 ­ ­ ­ 85 196 320 740 1,210 2,000
500 3 ­ ­ ­ 85 196 320 740 1,210 2,000
Max Torque (Nm) 1~500 1,2,3 1.5 X Continuous Torque
Max Input Speed (rpm) 1~5 1 7,500 6,500 5,500 4,500 3,500 3,000 2,200 2,000 1,700
7~50 2 8,000 8,000 6,000 6,000 6,000 6,000 4,800 3,600 3,600
75~500 3 ­ ­ ­ 8,000 8,000 6,000 6,000 6,000 6,000
Backlash (arcmin) 1~5 1 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6
7~50 2 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8
75~500 3 ­ ­ ­ ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10
Max Radial Load, Output (N) 1~500 1,2,3 900 1,100 1,700 2,700 4,800 6,600 11,500 16,000 18,000
Max. Axial Load, Output (N) 1~500 1,2,3 450 550 850 1,350 2,400 3,300 5,750 8,500 9,000
Service Life (hours) 1~500 1,2,3 20,000*
Efficiency (%) 1~5 1 ≥ 98%
7~500 2,3 ≥ 94%
Temperature Range (°C) 1~500 1,2,3 ­30° C to +100° C
Lubrication 1~500 1,2,3 Synthetic Oils
Noise Level (1,500 rpm) 1~500 1,2,3 ≤ 71 ≤ 72 ≤ 76 ≤ 77 ≤ 78 ≤ 79 ≤ 81 ≤ 83 ≤ 84

Radial and axial load applied at center of shaft

Backlash measured at 2% of continuous output torque

S1 service life10,000 hrs

CT Flange Series Inertia Back to Top

Gearbox Inertia Ratio I Stages model Numbers
CT065FL CTO65FL1
CTO65FH CTO65FC
CT075FL CT075FL1
CT075FH CT075FC
CT090FL CT090FL1
CT090FH CT090FC
CT110FL CT110FL1
CT110FH CT110FC
CT140FL CT140FL1
CT140FH CT140FC
CT170FL CT170FL1
CT170FH CT170FC
CT210FL CT210FL1
CT210FH CT210FC
CT240FL CT240FL1
CT240FH CT240FC
CT280FL CT280FL1
CT280FH CT280FC
Moment of Inerta (kg∙cm²) 1 1 0.51 1.30 3.14 7.62 23.54 59.09 195.96 365.38 787.63
1.5 1 0.46 1.15 2.80 6.65 19.34 49.38 156.02 279.62 584.28
2 1 0.44 1.10 2.68 6.23 17.72 45.44 140.80 245.78 500.26
3 1 0.43 1.09 2.64 6.08 17.16 44.11 135.51 233.75 471.56
4 1 0.43 1.08 2.63 6.05 17.03 43.79 134.14 230.77 464.76
5 1 0.43 1.08 2.63 6.04 16.99 43.69 133.71 229.71 462.08
7 2 0.16 0.16 0.59 3.27 3.27 3.27 12.05 34.07 34.07
10 2 0.16 0.16 0.59 3.28 3.28 3.28 12.10 34.24 34.24
15 2 0.16 0.16 0.59 3.28 3.28 3.28 12.10 34.24 34.24
20 2 0.16 0.16 0.59 3.28 3.28 3.28 12.10 34.24 34.24
25 2 0.16 0.16 0.59 3.28 3.28 3.28 12.10 34.24 34.24
35 2 0.16 0.16 0.59 3.27 3.27 3.27 12.05 34.07 34.07
50 2 0.16 0.16 0.59 3.26 3.26 3.26 12.03 34.02 34.02
75 3 ­ ­ ­ 3.28 3.28 3.28 12.10 34.24 34.24
100 3 ­ ­ ­ 3.28 3.28 3.28 12.10 34.24 34.24
125 3 ­ ­ ­ 3.28 3.28 3.28 12.10 34.24 34.24
150 3 ­ ­ ­ 3.26 3.26 3.26 12.03 34.02 34.02
200 3 ­ ­ ­ 3.26 3.26 3.26 12.03 34.02 34.02
250 3 ­ ­ ­ 3.26 3.26 3.26 12.03 34.02 34.02
350 3 ­ ­ ­ 3.26 3.26 3.26 12.03 34.02 34.02
500 3 ­ ­ ­ 3.26 3.26 3.26 12.03 34.02 34.02

CT Flange Series Weight Back to Top

Gearbox Weight (kg) Ratio I Stages Model Numbers
CT065 CT075 CT090 CT110 CT140 CT170 CT210 CT240 CT280
FL Series 1~5 1 2.8 4.4 7.1 12.1 20.9 36.1 69.4 101.2 158.3
7~50 2 3.2 4.8 8.1 14.3 24.2 38.5 74.1 112.4 171.0
75~500 3 ­ ­ ­ 13.9 23.7 38.8 73.4 110.2 168.7
FL 1 Series 1~5 1 2.7 4.3 7.1 11.9 20.3 35.5 68.3 99.6 156.0
7~50 2 3.2 4.8 8.0 14.2 23.9 37.9 73.0 110.8 168.6
75~500 3 ­ ­ ­ 13.8 23.4 38.2 72.3 108.6 166.4
FH Series 1~5 1 2.6 4.1 6.7 11.4 18.9 32.9 63.2 92.5 146.0
7~50 2 3.1 4.6 7.7 13.6 22.4 35.3 67.9 103.7 158.7
75~500 3 ­ ­ ­ 13.3 21.9 35.6 67.2 101.5 156.5
FC Series 1~5 1 2.9 4.4 7.2 11.8 20.4 35.0 66.5 96.0 151.7
7~50 2 3.3 4.9 8.2 14.1 24.1 37.4 71.2 107.2 164.4
75~500 3 ­ ­ ­ 13.7 23.5 37.5 70.5 105.0 152.2

CT-FL & FL1 Dimensions, Single Stage, Ratio 1~5 Back to Top

CT-FL-Dimension-s1

CT-FL pictured above. CT-FL1 is missing the shaft on the right.

Dimensions Model Numbers
CT065FL/FL1 CT075FL/FL1 CT090FL/FL1 CT110FL/FL1 CT140FL/FL1 CT170FL/FL1 CT210FL/FL1 CT240FL/FL1 CT280FL/FL1
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D3 13 16 18 22 32 40 50 55 60
D4 63 73 88 108 135 165 205 235 275
D5 31 35 43 53 68 83 104 124 144
D6 M4 M5 M5 M8 M12 M16 M16 M16 M20
D7 21 22 28 33 47 55 75 85 110
D12 62 72 86 106 104 128 160 180 200
D14 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 16 25 28 32 45 50 70 80 100
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 47.5 54 62 72 87 102 127 147 167
L8 67 84 97 112 137 162 202 232 277
L9 4.5 4.8 4.8 7.2 10 12 12 12 15
L10 10 12.5 12.5 19 28 36 36 36 42
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 49 60.5 63 69.5 85.5 95 130 144.5 135
L22 81.5 98 108 124.5 155.5 180 235 264.5 275
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 11/ ≤ 12 **≤14/≤15.875/≤16 ≤ 19 ≤ 24 ≤ 32 ≤ 38 ≤ 42 ≤ 48 ≤ 55
C4* 30 34 40 40 50 60 85 85 116
C5* 30 50 80 80 110 130 180 180 200
C6* 3.5 8 4 4 5 6 6 6 6
C7* 42 60 90 90 115 142 190 190 220
C8* 19.5 19 17 17 19.5 22.5 29 29 63
C9* 133.5 154.5 170 196.5 245 287.5 369 413.5 478
C10* 13.25 13.5 10.75 10.75 13 15 20.75 20.75 53.5
B1 h9 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64

* C1-C10 are motor spefic dimensions, metrice standard shown. Refer to factory for your specific motor mounting system.

** CT065FLM1 (FL1M1) offers C3 ≤ 12 option, CT075FLM1 (FL1M1) offers C3 ≤ 16 option, CT075FLM2 (FL1M2) offers C3 ≤ 15.875 option.

CT-FL & FL1 Dimensions, 2 Stage, Ratio 7~50 Back to Top

CT-FL-Dimension-s2

CT-FL picture above. CT-FL1 is without the shaft on the right.

Dimensions Model Numbers
CT065FL/FL1 CT075FL/FL1 CT090FL/FL1 CT110FL/FL1 CT140FL/FL1 CT170FL/FL1 CT210FL/FL1 CT240FL/FL1 CT280FL/FL1
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D3 13 16 18 22 32 40 50 55 60
D4 63 73 88 108 135 165 205 235 275
D5 31 35 43 53 68 83 104 124 144
D6 M4 M5 M5 M8 M12 M16 M16 M16 M20
D7 21 22 28 33 47 55 75 85 110
D12 62 72 86 106 104 128 160 180 200
D14 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 16 25 28 32 45 50 70 80 100
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 47.5 54 62 72 87 102 127 147 167
L8 67 84 97 112 137 162 202 232 277
L9 4.5 4.8 4.8 7.2 10 12 12 12 15
L10 10 12.5 12.5 19 28 36 36 36 42
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 75 84.5 99 122 144.5 157.5 206.5 239 248
L22 107.5 122 144 177 214.5 242.5 311.5 359 388
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 24 ≤ 24 ≤ 24 ≤ 32 ≤ 38 ≤ 38
C4* 30 30 34 40 40 40 50 60 60
C5* 30 30 50 80 80 80 110 130 130
C6* 3.5 3.5 8 4 4 4 5 6 6
C7* 42 42 60 92 92 92 115 142 142
C8* 21.5 21.5 21.5 20 20 20 24 31 31
C9* 161.5 181 210.5 252 304.5 347.5 440.5 510 559
C10* 14.4 14.5 15.5 13 13 13 16 21 21
B1 h9 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64

* C1-C10 are motor spefic dimensions, metrice standard shown. Refer to factory for your specific motor mounting system.

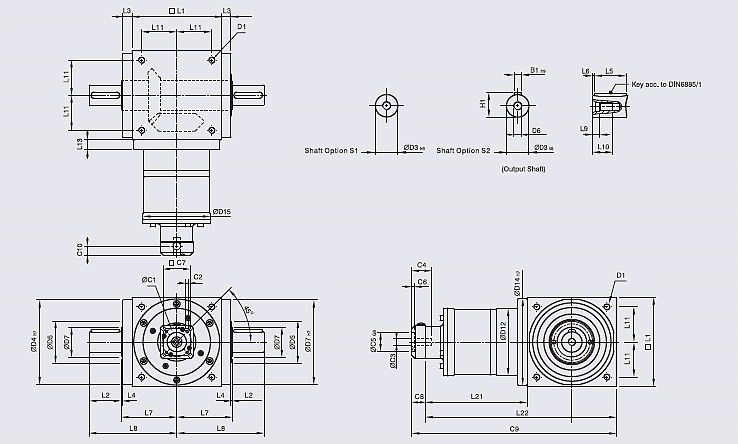

CT-FL & FL1 Dimensions, 3 Stage, Ratio 75~500 Back to Top

CT-FL-Dimension-s3

CT-FL picture above. CT-FL1 is without the shaft on the right.

Dimensions  Model Number
CT110FL/FL1 CT140FL/FL1 CT170FL/FL1 CT210FL/FL1 CT240FL/FL1 CT280FL/FL1
D1 M8 M10 M12 M16 M16 M16
D3 22 32 40 50 55 60
D4 108 135 165 205 235 275
D5 53 68 83 104 124 144
D6 M8 M12 M16 M16 M16 M20
D7 33 47 55 75 85 110
D12 106 104 128 160 180 200
D14 108 135 165 205 235 275
D15 107 105 127 158 178 198
L1 110 140 170 210 240 280
L2 40 50 60 75 85 110
L3 15 15 15 20 25 25
L4 2 2 2 2 2 2
L5 32 45 50 70 80 100
L6 4 2.5 5 2.5 2.5 5
L7 72 87 102 127 147 167
L8 112 137 162 202 232 277
L9 7.2 10 12 12 12 15
L10 19 28 36 36 36 42
L11 44 55 67 85 95 110
L13 15 15 15 20 25 25
L21 136.5 159.5 183.5 226 269 278
L22 191.5 229.5 268.5 331 389 418
C1* 46 46 70 70 100 100
C2* M4 M4 M5 M5 M6 M6
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 16 ≤ 24 ≤ 24
C4* 30 30 34 34 40 40
C5* 30 30 50 50 80 80
C6* 3.5 3.5 8 8 4 4
C7* 42 42 60 60 92 92
C8* 21.5 21.5 21.5 21.5 20 20
C9* 268 321 375 457.5 529 578
C10* 14.5 14.5 15.5 15.5 13 13
B1 6 10 12 14 16 18
H1 24.5 35 43 53.5 59 64

* C1-C10 are motor spefic dimensions, metric standard shown. Refer to factory for your specific motor

CT-FH Dimensions, Single Stage, Ratio 1~ Back to Top

CT-FH-Dimension-s1

Dimensions Model Numbers
CT065FH CT075FH CT090FH CT110FH CT140FH CT170FH CT210FH CT240FH CT280FH
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D2 13 14 18 22 32 40 50 55 60
D4 63 73 88 108 135 165 205 235 275
D5 31 35 43 53 68 83 104 124 144
D7 21 22 28 33 47 55 75 85 110
D12 62 72 86 106 104 128 160 180 200
D14 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
L1 65 75 90 110 140 170 210 240 280
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 16 25 28 32 45 50 70 80 100
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 47.5 54 62 72 87 102 127 147 167
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 49 60.5 63 69.5 85.5 95 130 144.5 135
L22 81.5 98 108 124.5 155.5 180 235 264.5 275
L23 40 47 52 53 70 80 95 115 115
L24 30 32 35 35 50 55 65 80 80
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 11/ ≤ 12 **≤14/≤15.875/≤16 ≤ 19 ≤ 24 ≤ 32 ≤ 38 ≤ 42 ≤ 48 ≤ 55
C4* 30 34 40 40 50 60 85 85 116
C5* 30 50 80 80 110 130 180 180 200
C6* 3.5 8 4 4 5 6 6 6 6
C7* 42 60 90 90 115 142 190 190 220
C8* 19.5 19 17 17 19.5 22.5 29 29 63
C9* 133.5 154.5 170 196.5 245 287.5 369 413.5 478
C10* 13.25 13.5 10.75 10.75 13 15 20.75 20.75 53.5
B3 5 5 6 6 10 12 14 16 18
H3 15.3 16.3 20.8 24.8 35.3 43.3 53.8 59.3 64.4

* C1-C10 are motor spefic dimensions, metrice standard shown. Refer to factory for your specific motor mounting system.

** CT065FHM1 offers C3 ≤ 12 option, CT075FHM1 offers C3 ≤ 16 option, CT075FHM2 offers C3 ≤ 15.875 option.

CT-FH Dimensions, 2 Stage, Ratio 7~50 Back to Top

CT-FH-Dimension-s2

Dimensions Model Numbers
CT065FH CT075FH CT090FH CT110FH CT140FH CT170FH CT210FH CT240FH CT280FH
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D2 13 14 18 22 32 40 50 55 60
D4 63 73 88 108 135 165 205 235 275
D5 31 35 43 53 68 83 104 124 144
D7 21 22 28 33 47 55 75 85 110
D12 62 72 86 106 104 128 160 180 200
D14 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
L1 65 75 90 110 140 170 210 240 280
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L7 47.5 54 62 72 87 102 127 147 167
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 75 84.5 99 122 144.5 157.5 206.5 239 248
L22 107.5 122 144 177 214.5 242.5 311.5 359 388
L23 40 47 52 53 70 80 95 115 115
L24 30 32 35 35 50 55 65 80 80
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 24 ≤ 24 ≤ 24 ≤ 32 ≤ 38 ≤ 38
C4* 30 30 34 40 40 40 50 60 60
C5* 30 30 50 80 80 80 110 130 130
C6* 3.5 3.5 8 4 4 4 5 6 6
C7* 42 42 60 92 92 92 115 142 142
C8* 21.5 21.5 21.5 20 20 20 24 31 31
C9* 161.5 181 210.5 252 304.5 347.5 440.5 510 559
C10* 14.5 14.5 15.5 13 13 13 16 21 21
B3 5 5 6 6 10 12 14 16 18
H3 15.3 16.3 20.8 24.8 35.3 43.3 53.8 59.3 64.4

* C1-C10 are motor spefic dimensions, metrice standard shown. Refer to factory for your specific motor mounting system.

CT-FH Series Dimensions, 3 Stage, Ratio 75~500 Back to Top

CT-FH-Dimension-s3

Dimensions Model Numbers
CT110FH CT140FH CT170FH CT210FH CT240FH CT280FH
D1 M8 M10 M12 M16 M16 M16
D2 h7 22 32 40 50 55 60
D4 h7 108 135 165 205 235 275
D5 53 68 83 104 124 144
D7 33 47 55 75 85 110
D12 106 104 128 160 180 200
D14 h7 108 135 165 205 235 275
D15 107 105 127 158 178 198
L1 110 140 170 210 240 280
L3 15 15 15 20 25 25
L4 2 2 2 2 2 2
L7 72 87 102 127 147 167
L11 44 55 67 85 95 110
L13 15 15 15 20 25 25
L21 136.5 159.5 183.5 226 269 278
L22 191.5 229.5 268.5 331 389 418
L23 53 70 80 95 115 115
L24 35 50 55 65 80 80
C1* 46 46 70 70 100 100
C2* M4 M4 M5 M5 M6 M6
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 16 ≤ 24 ≤ 24
C4* 30 30 34 34 40 40
C5* 30 30 50 50 80 80
C6* 3.5 3.5 8 8 4 4
C7* 42 42 60 60 92 92
C8* 21.5 21.5 21.5 21.5 20 20
C9* 268 321 375 457.5 529 578
C10* 14.5 14.5 15.5 15.5 13 13
B3 6 10 12 14 16 18
H3 24.8 35.3 43.3 53.8 59.3 64.4

* C1-C10 are motor spefic dimensions, metric standard shown. Contact Candy Controls for your specific motor

CT-FC Dimensions, Single Stage, Ratio 1~5 Back to Top

CT-FC-Dimension-s1

Dimensions Model Numbers
CT065FC CT075FC CT090FC CT110FC CT140FC CT170FC CT210FC CT240FC CT280FC
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D2 13 14 18 22 32 40 50 55 60
D3 16 16 22 25 44 50 62 68 75
D4 63 73 88 108 135 165 205 235 275
D12 62 72 86 106 104 128 160 180 200
D14 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
D17 26 26 36 38 61 70 86 86 100
D18 41 41 50 50 80 90 110 115 138
L1 65 75 90 110 140 170 210 240 280
L2 14 14 18 18 24 26 29 29 30.5
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L7 47.5 54 62 72 87 102 127 147 167
L8 66 72.5 85 95 116.5 113.5 161.5 181.5 205
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 49 60.5 63 69.5 85.5 95 130 144.5 135
L22 81.5 98 108 124.5 155.5 180 235 264.5 275
L23 15 15 20 20 26 28 31 31 32.5
L24 15 15 20 20 26 28 31 31 32.5
L25 15 15 19.5 19.5 25.5 27.5 30.5 30.5 32.5
L26 18.5 18.5 23 23 29.5 31.5 34.5 34.5 38
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 11/ ≤ 12 **≤14/≤15.875/≤16 ≤ 19 ≤ 24 ≤ 32 ≤ 38 ≤ 42 ≤ 48 ≤ 55
C4* 30 34 40 40 50 60 85 85 116
C5* 30 50 80 80 110 130 180 180 200
C6* 3.5 8 4 4 5 6 6 6 6
C7* 42 60 90 90 115 142 190 190 220
C8* 19.5 19 17 17 19.5 22.5 29 29 63
C9* 133.5 154.5 170 196.5 245 287.5 369 413.5 478
C10* 13.25 13.5 10.75 10.75 13 15 20.75 20.75 53.5

* C1-C10 are motor spefic dimensions, metrice standard shown. Contact Candy Controls for your specific motor mounting system.

** CT065FCM1 offers C3 ≤ 12 option, CT075FCM1 offers C3 ≤ 16 option, CT075FCM2 offers C3 ≤ 15.875 option.

CT-FC Dimensions, 2 Stage, Ratio 7~50 Back to Top

CT-FC-Dimension-s2

Dimensions Model Numbers
CT065FC CT075FC CT090FC CT110FC CT140FC CT170FC CT210FC CT240FC CT280FC
D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
D2 H6 13 14 18 22 32 40 50 55 60
D3 h8 16 16 22 25 44 50 62 68 75
D4 h7 63 73 88 108 135 165 205 235 275
D12 62 72 86 106 104 128 160 180 200
D14 h7 63 73 88 108 135 165 205 235 275
D15 62.9 72.9 87 107 105 127 158 178 198
D17 26 26 36 38 61 70 86 86 100
D18 41 41 50 50 80 90 110 115 138
L1 65 75 90 110 140 170 210 240 280
L2 14 14 18 18 24 26 29 29 30.5
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L7 47.5 54 62 72 87 102 127 147 167
L8 66 72.5 85 95 116.5 113.5 161.5 181.5 205
L11 27 30 36 44 55 67 85 95 110
L13 13 15 15 15 15 15 20 25 25
L21 75 84.5 99 122 144.5 157.5 206.5 239 248
L22 107.5 122 144 177 214.5 242.5 311.5 359 388
L23 15 15 20 20 26 28 31 31 32.5
L24 15 15 20 20 26 28 31 31 32.5
L25 15 15 19.5 19.5 25.5 27.5 30.5 30.5 32.5
L26 18.5 18.5 23 23 29.5 31.5 34.5 34.5 38
C1* 46 70 100 100 130 165 215 215 235
C2* M4 M5 M6 M6 M8 M10 M12 M12 M12
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 24 ≤ 24 ≤ 24 ≤ 32 ≤ 38 ≤ 38
C4* 30 30 34 40 40 40 50 60 60
C5* 30 30 50 80 80 80 110 130 130
C6* 3.5 8 4 4 5 6 6 6 6
C7* 42 42 60 92 92 92 115 142 142
C8* 21.5 21.5 21.5 20 20 20 24 31 31
C9* 161.5 181 210.5 252 304.5 347.5 440.5 510 559
C10* 14.5 14.5 15.5 13 13 13 16 21 21

* C1-C10 are motor spefic dimensions, metrice standard shown. Contact Candy Controls for your specific motor mounting system.

CT-FC Dimensions, 3 Stage, Ratio 75~500 Back to Top

CT-FC-Dimension-s3

Dimensions Model Numbers
CT110FC CT140FC CT170FC CT210FC CT240FC CT280FC
D1 M8 M10 M12 M16 M16 M16
D2 22 32 40 50 55 60
D3 25 44 50 62 68 75
D4 108 135 165 205 235 275
D12 106 104 128 160 180 200
D14 108 135 165 205 235 275
D15 107 105 127 158 178 198
D17 38 61 70 86 86 100
D18 50 80 90 110 115 138
L1 110 140 170 210 240 280
L2 18 24 26 29 29 30.5
L3 15 15 15 20 25 25
L4 2 2 2 2 2 2
L7 72 87 102 127 147 167
L8 95 116.5 113.5 161.5 181.5 205
L11 44 55 67 85 95 110
L13 15 15 15 20 25 25
L21 136.5 159.5 183.5 226 269 278
L22 191.5 229.5 268.5 331 389 418
L23 20 26 28 31 31 32.5
L24 20 26 28 31 31 32.5
L25 19.5 25.5 27.5 30.5 30.5 32.5
L26 23 29.5 31.5 34.5 34.5 38
C1* 46 46 70 70 100 100
C2* M4 M4 M5 M5 M6 M6
C3* ≤ 12 ≤ 12 ≤ 16 ≤ 16 ≤ 24 ≤ 24
C4* 30 30 34 34 40 40
C5* 30 30 50 50 80 80
C6* 3.5 3.5 8 8 4 4
C7* 42 42 60 60 92 92
C8* 21.5 21.5 21.5 21.5 20 20
C9* 268 321 375 457.5 529 578
C10* 14.5 14.5 15.5 15.5 13 13

* C1-C10 are motor spefic dimensions, metrice standard shown. Contact Candy Controls for your specific motor
