Cubic Ball Screw Jack

Candy Controls - cubic ball screw jack

Quick Facts

Cubic Ball Screw Jack Quick Facts
  • Highly accurate screw jacks and systems
  • High speed, high efficiency screw jacks
  • Load capacity from 0.1 ton up to 6 tons
  • Travel rates up to 1,500mm/minute
  • Holding torque required due to efficiency
  • Multiple configurations and accessories
  • Single or multiple jack systems
Gear Ratios Ratio:4:1
  • Pitch=5,Speed 1.25mm/r
  • pitch=10,Speed 2.5mm/r
Ratio:16:1
  • Pitch=5,Speed 0.3125mm/r
  • pitch=10,Speed 0.625mm/r

Product Overview

Ball Screw Jack- Product Overview

Candy’s Ball Screw Jack is available in both Foot-Mount (BSJ Series) and cubic style (CBSJ Series) housings. The BSJ and CBSJ Series are an excellent solution for industrial lifting, lowering, pushing and/or pulling applications that require higher efficiency, greater accuracy or faster travel speeds than offered by Worm Gear Screw Jacks.

Screw Jack Types

Cubic Ball Screw Jack types

End of Screw Options

end of screw options

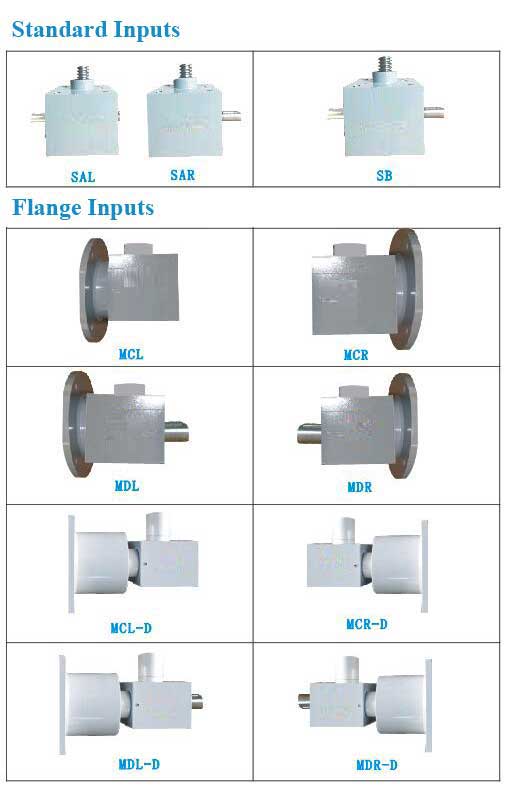

Input Configuration

Cubic Ball Screw Jack - input

Travel Stroke

Cubic Ball Screw Jack - travel stroke

Screw Jack Accessories

Cubic Ball Screw Jack - accessories

Installation

Cubic Ball Screw Jack - installation
