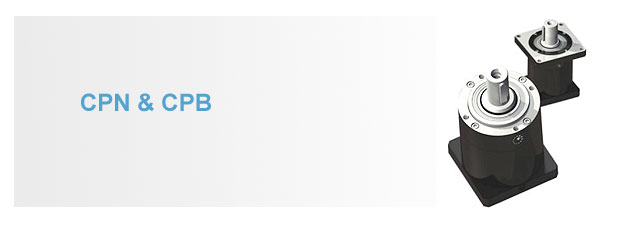

CPN & CPB

Product Overview

cpn-cpb

CPN Performance Specifications

Model Numbers
Gearhead Performance Ratio Stages CPN023 CPN034 CPN042 CPN056 CPN075
Continuous Torque (Nm) 3 1 14 39 104 215 423
4 1 12 31 85 176 364
5 1 14 39 104 215 423
7 1 12 33 91 195 358
10 1 9 26 65 150 293
15 2 14 39 104 215 423
16 2 12 31 85 176 364
20 2 12 31 85 176 364
25 2 14 39 104 215 423
30 2 14 39 104 215 423
35 2 12 33 91 195 358
40 2 12 31 95 176 364
50 2 14 39 104 215 423
70 2 12 33 91 195 358
100 2 9 26 65 150 293
Peak Torque (Nm) 3-100 1,2 3 times the Continuous Output Torque
Continuous Speed (rpm) 3-100 1,2 4500 4000 3600 3000 2500
Maximum Speed (rpm) 3-100 1,2 8,000 6,000 6,000 4,800 3,600
Standard Backlash (arcmin) 3-10 1 <8 <8 <6 <6 <6
15-100 2 <10 <10 <8 <8 <8
Noise @ 3000 rpm (dB) 3-100 1,2 <68 <70 <72 <74 <75
Rated Life (hours) 3-100 1,2 20,000
Tortional Stiffness ( Nm/arcmin) 3-100 1,2 1.6 6.4 17.5 62.8 143.5
Maximum Radial Load ( N) 3-100 1,2 680 1770 1830 4140 6440
Maximum Axial Load (N) 3-100 1,2 340 885 915 2,070 3220
Efficiency (%) 3-10 1 >97
15-100 2 >94
Weight (kg) 3-10 1 0.8 2.8 4.6 9.7 19.7
15-100 2 1.1 3 6 13 26.3
Protection 3-100 1,2 IP64

CPN Series Inertia

Model Numbers
Gearhead Inertia Stage Ratio CPN023 CPN034 CPN042 CPN056 CPN075
Moment of Inertia (Kg.cm2) 1 3 0.16 0.63 3.48 12.84 36.72
4 0.16 0.60 3.31 12.22 34.63
5 0.16 0.59 3.28 12.10 34.24
7 0.16 0.59 3.27 12.05 34.07
10 0.16 0.59 3.26 12.03 34.02
2 15 0.16 0.59 3.28 12.10 34.24
16 0.16 0.60 3.31 12.22 34.63
20 0.16 0.59 3.28 12.10 34.24
25 0.16 0.59 3.28 12.10 34.24
30 0.16 0.59 3.26 12.03 34.02
35 0.16 0.59 3.28 12.10 34.24
40 0.16 0.59 3.26 12.03 34.02
50 0.16 0.59 3.26 12.03 34.02
70 0.16 0.59 3.26 12.03 34.02
100 0.16 0.59 3.26 12.03 34.02

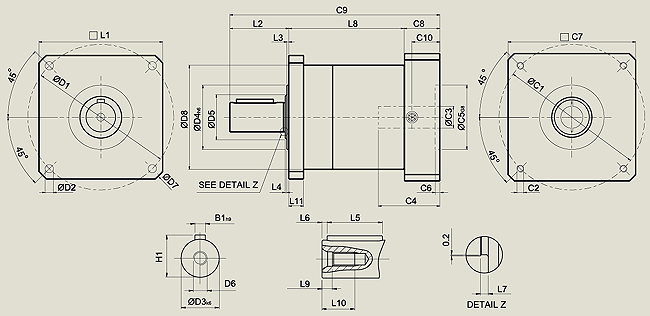

CPN Series Dimensions

CPN-Dimension

Model Numbers
Dimensions CPN023 CPN034 CPN042 CPN056 CPN075
D1 66.675 (2.625) 98.425(3.875) 125.73(4.950) 177.8(7.0) 215.011(8.465)
D2 5.2(0.205) 5.6(0.220) 7.1(0.280) 10.4(0.409) 14.2(0.559)
D3 12 (0.5) 19.05(0.750) 25.4(1.0) 38.1(1.5) 50.8(2.0)
D4 38.1 (1.5) 73.025(2.875) 55.5(2.185) 114.3(4.5) 152.4(6.0)
D5 17 25 40 50 65
D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X 1.75P M16 X 2P
D7 75 107.5 142 198 260
D8 50 70 90 120 155
L1 57.15 (2.250) 82.55(3.250) 106.68(4.2) 146.05(5.750) 190(7.480)
L2 31.75 38.1 50.8 63.5 88.9
L3 1.6 (0.063) 1.6(0.063) 1.6(0.063) 3.2(0.126) 4.75(0.187)
L4 1 1.5 1.5 2 2
L5 19.05 (0.750) 25.4(1.0) 31.75(1.250) 38.1(1.5) 63.5(2.5)
L6 3.788 (0.149) 3.8(0.150) 5.715(0.225) 8.563(0.337) 8.563(0.337)
L7 1 1 1.5 2 2
L8- 1 Stage 58.9 82 99.3 133.7 153.05
L8- 2 Stage 83.4 115 138.8 186.7 213.55
L9 4.5 4.8 7.2 10 12
L10 10 12.5 19 28 36
L11 6.4 7.9 12.7 19.05 22.2
C1* 66.675 (2.625) 98.425(3.875) 125.73(4.950) 149.225(5.875) 165
C2* M4 X 0.7P M5 X 0.8P M6 X 1P 11 thru M10 X 1.25P
C3* ≤12 ≤16 ≤24 ≤32 ≤38
C4* 32 (1.260) 40(1.575) 51(2.008) 55(2.165) 60
C5* 38.15 (1.502) 73.08(2.877) 55.65(2.191) 114.3(4.5) 130
C6* 3.5 (0.138) 4(0.157) 4(0.157) 4(0.157) 6
C7* 55(2.165) 85(3.346) 110(4.331) 130(5.118) 157
C8* 23.5(0.925) 27.5(1.083) 31(1.220) 29(1.142) 31
C9*- 1 Stage 114.15(4.494) 147.6(5.811) 181.1(7.130) 226.2(8.905) 272.95
C9*- 2 Stage 138.65(5.459) 180.6(7.110) 220.6(8.685) 279.2(10.992) 333.45
C10* 16.5(0.650) 21.5(0.846) 24(0.945) 21(0.827) 21
B1 3.175(0.125) 4.763(0.188) 6.35(0.250) 9.525(0.375) 9.525(0.375)
H1 14.125(0.556) 21.163(0.833) 28.2(1.110) 42.275(1.664) 55.125(2.170)

* C1~C10 are motor specific dimensions, metric standard shown. Consult Candy Controls for your specific motor

CPB Performance Specifications

Model Numbers
CPB Series Performance Ratio I Stages CPB060 CPB090 CPB115 CPB142
Continuous Torque (Nm) 3 1 14 39 104 215
4 1 12 31 85 176
5 1 14 39 104 215
7 1 12 33 91 195
10 1 9 26 65 150
15 2 14 39 104 215
16 2 12 31 85 176
20 2 12 31 85 176
25 2 14 39 104 215
30 2 14 39 104 215
35 2 12 33 91 195
40 2 12 31 85 176
50 2 14 39 104 215
70 2 12 33 91 195
100 2 9 26 65 150
Peak Torque (Nm) 3-100 1,2 3 X Continuous Output Torque
Continuous Speed (rpm) 3-100 1,2 4500 4000 3600 3000
Maximum Speed (rpm) 3-100 1,2 8,000 6,000 6,000 4,800
Standard Backlash (arcmin) 3-10 1 <8 <8 <6 <6
15-100 2 <10 <10 <8 <8
Noise @ 3000 rpm(dB) 3-100 1,2 <68 <70 <72 <74
Rated Life (hr) 3-100 1,2 20,000
Tortional Stiffness ( Nm/arcmin) 3-100 1,2 3.7 7.2 15.1 60.5
Maximum Radial Load ( N) 3-100 1,2 770 1750 1890 3720
Maximum Axial Load (N) 3-100 1,2 385 875 945 1860
Efficiency (%) 3-10 1 >97
15-100 2 >94
Weight (kg) 3-10 1 0.9 2.2 4.3 10
15-100 2 1.2 3 5.7 13.3
Protection 3-100 1,2 IP64

CPB Series Inertia

Model Numbers
Gearhead Inertia Stage Ratio CPB060 CPB090 CPB115 CPB142
Moments of Inertia (kg.cm2) 1 3 0.16 0.63 3.48 12.84
4 0.16 0.60 3.31 12.22
5 0.16 0.59 3.28 12.10
7 0.16 0.59 3.27 12.05
10 0.16 0.59 3.26 12.03
2 15 0.16 0.59 3.28 12.10
16 0.16 0.60 3.31 12.22
20 0.16 0.59 3.28 12.10
25 0.16 0.59 3.28 12.10
30 0.16 0.59 3.26 12.03
35 0.16 0.59 3.28 12.10
40 0.16 0.59 3.26 12.03
50 0.16 0.59 3.26 12.03
70 0.16 0.59 3.26 12.03
100 0.16 0.59 3.26 12.03

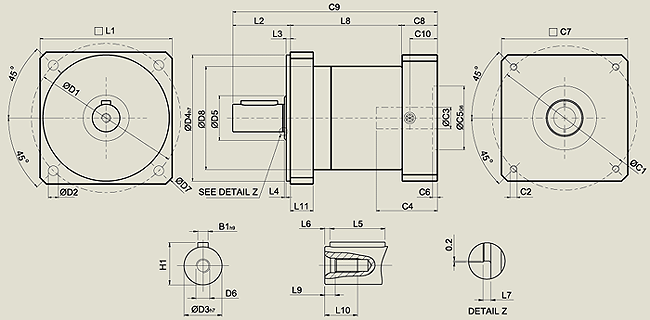

CPB Series Dimensions

CPB-Dimension

Model Numbers
Dimensions CPB060 CPB090 CPB115 CPB142
D1 70 100 130 165
D2 5.5 6.5 9 11
D3 16 20 24 40
D4 50 80 110 1320
D5 17 25 40 50
D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X 1.75P
D7 80 120 155 190
D8 50 70 90 120
L1 60 90 115 142
L2 25 40 50 80
L3 2.5 3 3.5 3.5
L4 1 1 1.5 1.5
L5 16 28 32 63
L6 3 5 7 8
L7 1 1 1.5 2
L8- 1 Stage 58 81 97 134
L8- 2 Stage 82.5 114 136.5 187
L9 4.5 4.8 7.2 10
L10 10 12.5 19 28
L11 13 17 20 25
C1* 46 70 100 130
C2* M4 X0.7P M5X 0.8P M6 X 1P M8 X 1.25P
C3* ≤12 ≤16 ≤24 ≤32
C4* 30 34 40 50
C5* 30 50 80 110
C6* 3.5 8 4 5
C7* 52 72 92 122
C8* 21.5 21.5 20 24
C9*- 1 Stage 104.5 142.5 167 238
C9*- 2 Stage 129 175.5 206.5 291
C10* 14.5 15.5 13 16
B1 5 6 8 12
H1 18 22.5 27 43

* C1~C10 are motor specific dimensions, metric standard shown. Consult Candy Controls for your specific motor
