Candy Spiral Bevel Gearboxes

Quick Facts

  • Standard ratios 1:1 and 2:1, additional ratios available
  • 95% transmission efficiency
  • 1450 RPM maximum input speed
  • Noise less than 80 dB
  • Ambient temperature from -20ºC to +80ºC

Product Overview

Candy’s spiral bevel series, CSB, features a comprehensive line of OEM right-angle gearboxes. These right-angle gearboxes are available with a number of shaft options including two, three and four shaft configurations.

CONSTRUCTION AND PERFORMANCE SPECIFICATIONS

The CSB Series features case hardened spiral bevel gears for rigidity and wear resistance. Taper roller bearings are incorporated to optimize torque and overhung load. The cast iron cubic housing is machined on all sides providing accurate and flexible mounting options. Input and output shafts are also heat treated for durability. Available in six sizes: CSB 065, CSB 090, CSB 120, CSB 160, CSB 200, CSB 260

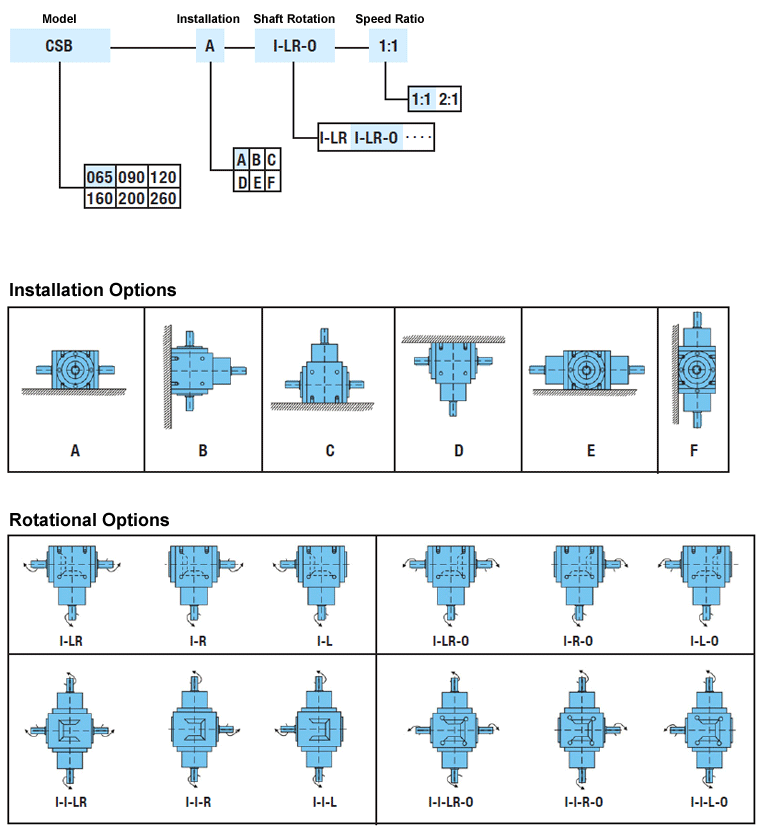

Selection

selcection
